MachineWorks® CNC Simulation and Verification Component Software and Polygonica® Polygon Mesh Modelling Software Toolkit will be exhibiting brand new features at the Machine Tool Show, at the international machine tool show, EMO Hannover 2019 this September, 16th – 21st in Hall 9 stand number D17.

What’s New in MachineWorks 8.2?

Offsetting for Design Part Comparison: MachineWorks’ customers can now take advantage of the advanced offsetting capabilities provided in Polygonica while doing design part comparison.

Within MachineWorks, Polygonica’s offsetting will help to eliminate noise from the process of identifying gouges and undercut areas. This will allow more automation and will improve the speed and reliability of the entire verification process for end users. Customers can just drop Polygonica into their MachineWorks builds and MachineWorks will manage the offsetting process under the hood.

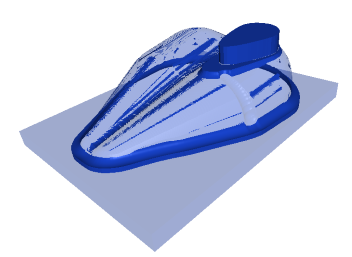

Volume of rest material (dark blue) computed using Boolean subtraction of design part from in-process stock

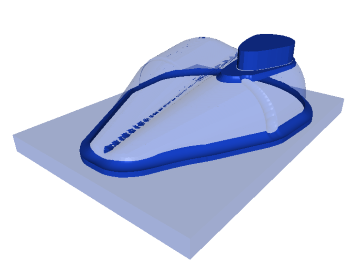

Volume of rest material (dark blue) after Polygonica offset applied. Noisy regions caused by small variations in floating point numerical representation are eliminated.

 “The advanced polygon modelling technologies developed for Polygonica have been adopted in a range of industries from dentistry to mining. We are very pleased to start to offer our customers Polygonica functionality that directly enhances long-standing MachineWorks functions also,” said Dr Fenqiang Lin, Managing Director of MachineWorks.

MachineWorks Parasolid Bridge: An innovative new library that uses the feature detection module to analyse the in-process stock then constructs a Siemens Parasolid model. Portions of surfaces that map onto planes, spheres, cylinders, cones and torus are recreated in Parasolid as analytic primitives whilst more complex freeform surfaces can be passed as polygon meshes.

Using Parasolid Communicator with Convergent ModelingTM APIs a fully compliant Parasolid model can be constructed suitable for accurate design of complex fixturing and even as input to CAM toolpath generation algorithms.

The combination of the excellent quality provided by the polygonal-BREP of MachineWorks’ Visicut engine and the power of Siemens Parasolid’s modelling delivers game changing results, particularly for prismatic machining.

What’s New in Polygonica 2.3 for Additive Manufacturing?

Slicing: Driven by increasing customer demand for fast, memory efficient slicing for large area print-beds, Polygonica’s slicing has been completely overhauled during the 2.3 release cycle. The new slicer is dramatically more memory efficient whilst in many cases improving performance compared to the old slicer.

Anistropic Offsetting: The new anisotropic offset capability allows applications to offset parts by different amounts along each axis, allowing more accurate compensation for material distortion for different print scenarios.

Original Model
Offsett in x and y only
Offset in z only
Pump by mark22973268 Published on October 15, 2016

Gluing: Gluing allows parts that don’t quite connect to be joined without gaps. This can overcome issues when unioning parts with surfaces that are intended to be coincident but aren’t quite, either due to issues with modelling or because of differences in how each surface is tessellated.

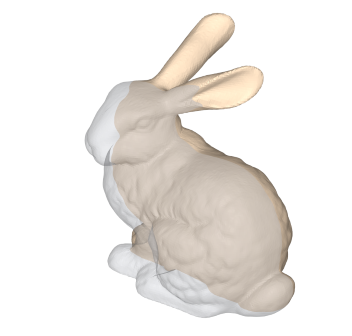

Standford Bunny split into two
partially overlapping parts

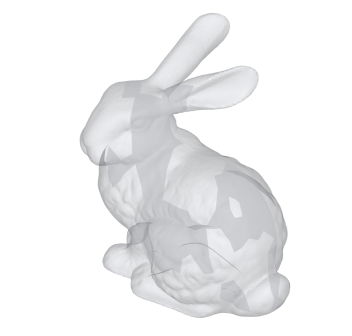

Result of Boolean union
- thin slivers of internal geometry remain

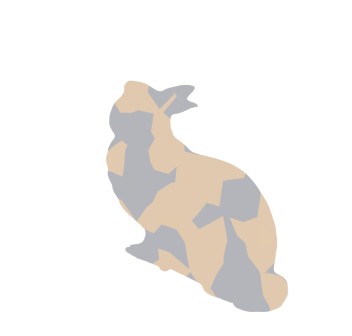

Result of Boolean intersection (grey) plus
material added by glue operation (gold)
Result of Glue operation - the two parts have been unioned
together with no sliver of geometry


Optimised function for creating support volumes: A new function dedicated to generating the 3D volumes of regions where support structures are required has been added. This function is optimised to this particular use-case and delivers considerable performance and quality improvements.

Preserve regions defined by different attributes in simplification: In order to facilitate faster download of models from the cloud to the client device Polygonica’s simplification algorithms have been enhanced to preserve boundaries between faces with different sets of attributes e.g. colour and texture.
